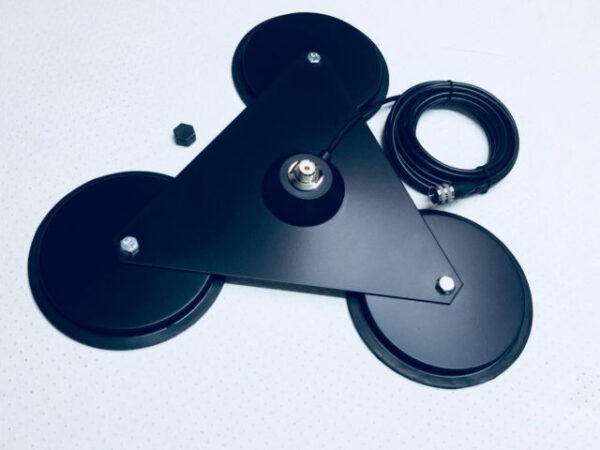

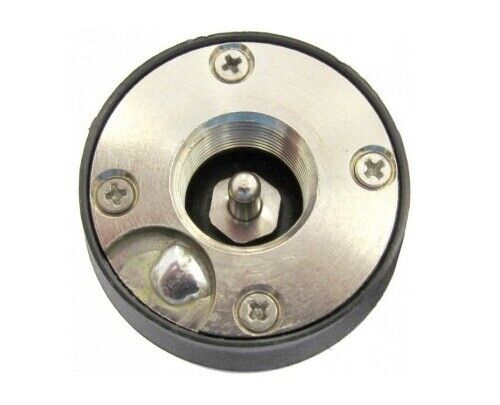

Main Features – CB & 10m Mobile Antennas – Very High Power Handling Capability – Tunable From 27 to 28.5 MHz – Protection From Static Discharges DC-Ground – 17/7 PH Tapered Stainless Steel Whip – Whip Detachable For Car-Wash – Suitable For Magnetic Mount Installation Electrical Data – Type: Base Loaded – Frequency Range: 27 … 28.5 MHz – Impedance: 50 Ω – Polarization: Linear Vertical – SWR @ Res. Freq.: ≤ 1.2 – Bandwidth @ SWR ≤ 2: ≥ 2000 KHz (200 Channel) – Max. Power: 1500 Watts (CW) Continuous 5000 Watts (CW) Short Time Mechanical Data – Mounting: UHF-Male (PL 259) – Cable Length/Type: Standard: For Power Up To 600 Watts Max: 4m RG58 Hi Power: For Power Up To 2000 Watts max: 4m RG303 Teflon – Height (approx.): 1965 mm – Weight (approx.): 650 gr – Cable lenght/Type: PL version: not included triple mag mount with 3,5 mt cable RG 58 MADE IN ITALY
