Galvanised Steel Vertical Ladder with Hoops and Walkthrough

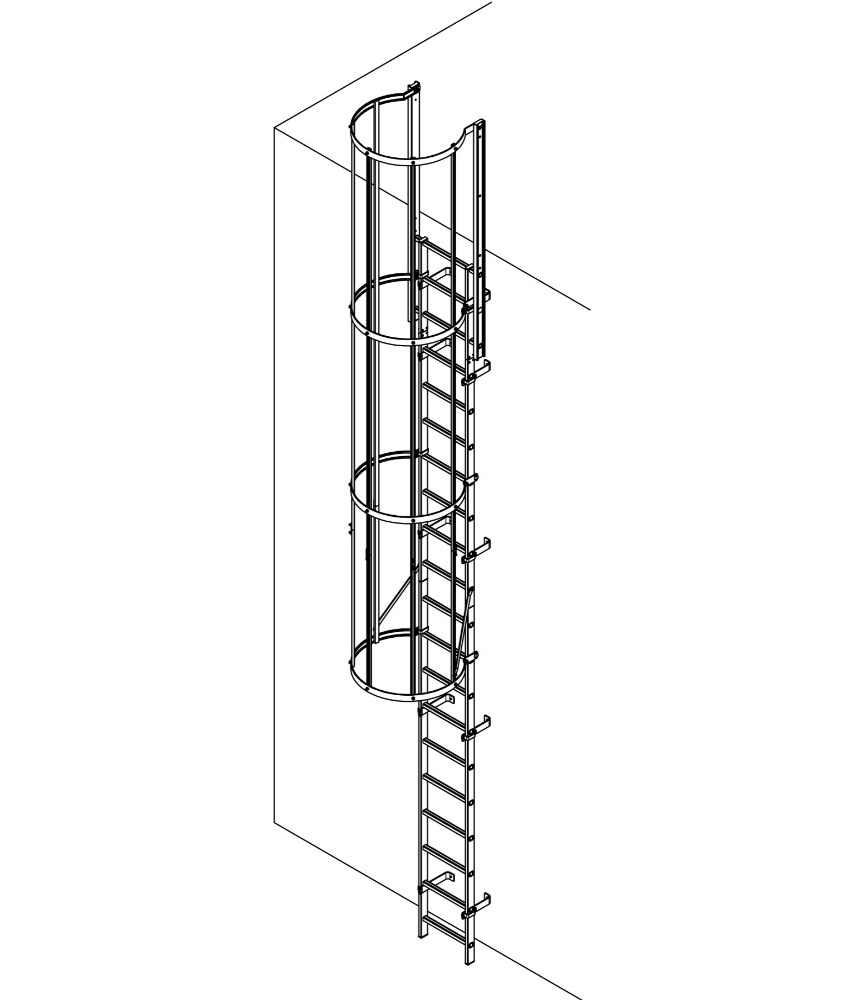

The Hymer galvanised steel vertical ladder system is flexible, easy-to-install and manufactured to EN 14122-4. This model has twin handrails at the top to facilitate safe entry or exit from the roof to the ladder and vise-versa. Sizes are measured from ground to roof level. The ladders are designed to be easily trimmed to size on site to suit your needs. All components are tested to the current national and international standards (DIN 18799-1, DIN 14094-1, DIN EN ISO 1422 and EN353-1) and have a test certificate for all materials. Moreover, Krause now provides verification that its fixed access ladders are designed and fabricated in accordance with the specifications of DIN EN 1090, which came into force on 1st July 2014. All screws and nuts are already pre-installed on the components. Simply select the nearest length you need, and cut to size on site for perfect fit installion when you install these modular ladders.   We supply detailed installation instructions with every project. The safety cage braces are G-Profiles into which the hammer head bolts are easily inserted after installing the vertical ladders. Subsequently, this makes it possible to easily shift the braces even after installation. Please note the hoops are not supplied with the 2.09m version, as this is too small to accomodate hoops. Ladder Specification: Material: Galvanised Steel Class 1 Heavy Duty Rung Load Rating: 150kg Stand-off brackets: 200mm from wall Fixings in stainless steel A4 grade External Ladder Width: 520mm Cage Specifications Cage Diameter – 724mm Strap: 50 x 10mm alloy bar Fixings: Socket bolts (A4 stainless steel) 5 No Straps as BS4211: 2005  A1 2008 Certified to: EN 14122 DIN 18799-1 DIN 14094-1 Need a Specific Requirement? We can offer… Expert Advice Free 3D CAD Drawing Competitive Prices Compliant With Safety Standards Get FREE Quote Fixed Ladder Optional Extras Adjustable Floor Brackets Ladder Guard (L4)
