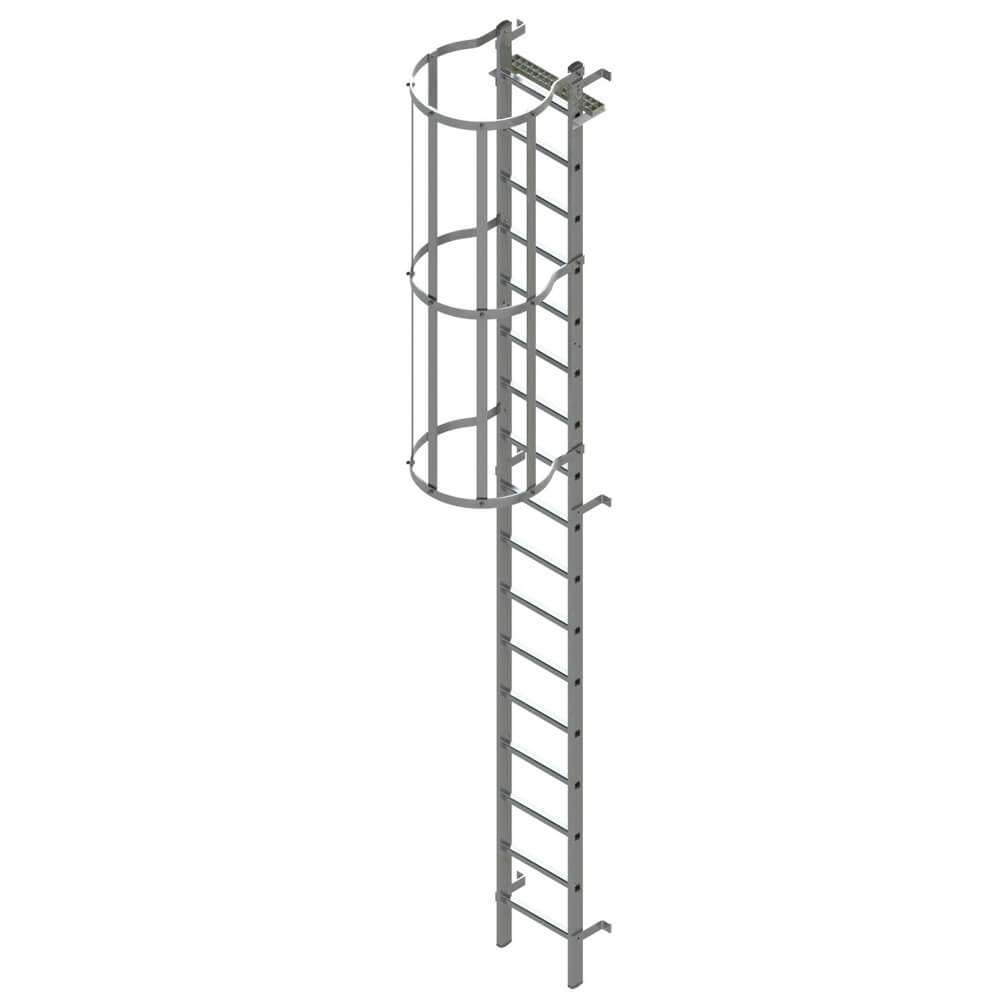

Galvanised Steel Vertical Fixed Ladder with Safety Cage

The Krause galvanised steel vertical ladder system is flexible, easy-to-install and manufactured to EN 14122-4. The modular fixed vertical ladder system for hatch access offers an unrivalled number of design options. So, no matter what obstacles you face, we have the ladder solution for you. Typically used where access to a roof or upper area is needed using a hatch All screws and nuts are already pre-installed on the components. We supply detailed installation instructions with every project. The safety cage braces are G-Profiles into which the hammer head bolts are easily inserted after installing the vertical ladders. Subsequently, this makes it possible to easily shift the braces even after installation. Ladder Specification: Material: Galvanised Steel Class 1 Heavy Duty Rung Load Rating: 150kg Stand-off brackets: 200mm from wall Fixings in stainless steel A4 grade External Ladder Width: 520mm Cage Specifications Cage Diameter – 724mm Cages above 2200 – 3000mm Strap: 50 x 10mm alloy bar Fixings: Socket bolts (A4 stainless steel) 5 No Straps as BS4211: 2005  A1 2008 Certified to: EN 14122 DIN 18799-1 DIN 14094-1 Need a Specific Requirement? We can offer… Expert Advice Free 3D CAD Drawing Competitive Prices Compliant With Safety Standards Get FREE Quote Fixed Ladder Optional Extras: Adjustable Floor Brackets Adjustable Floor Brackets For fixing vertical fixed ladders to the floor, these are adjustable, giving you an adjustable fixing point. For attaching the fixed ladder to the floor. 200mm adjustment Including fastening material for ladder assembly. Without screws for ground attachment. Ladder Guard (L4) Ladder Guard (L4) The L4 Ladderguard is designed to fit wider ladders ranging from 360mm to 470mm internal rung width, whilst covering more of the ladder. Sliding Ladder Access Aid Sliding Ladder Access Aid An extendable ladder section at the top of a fixed ladder provides a safe and secure transition when entering or exiting from elevated platforms or roof areas. It extends above the landing surface, offering additional handhold support and improving stability during top access. This helps users maintain balance and reduces the risk of falls when stepping on or off the ladder
