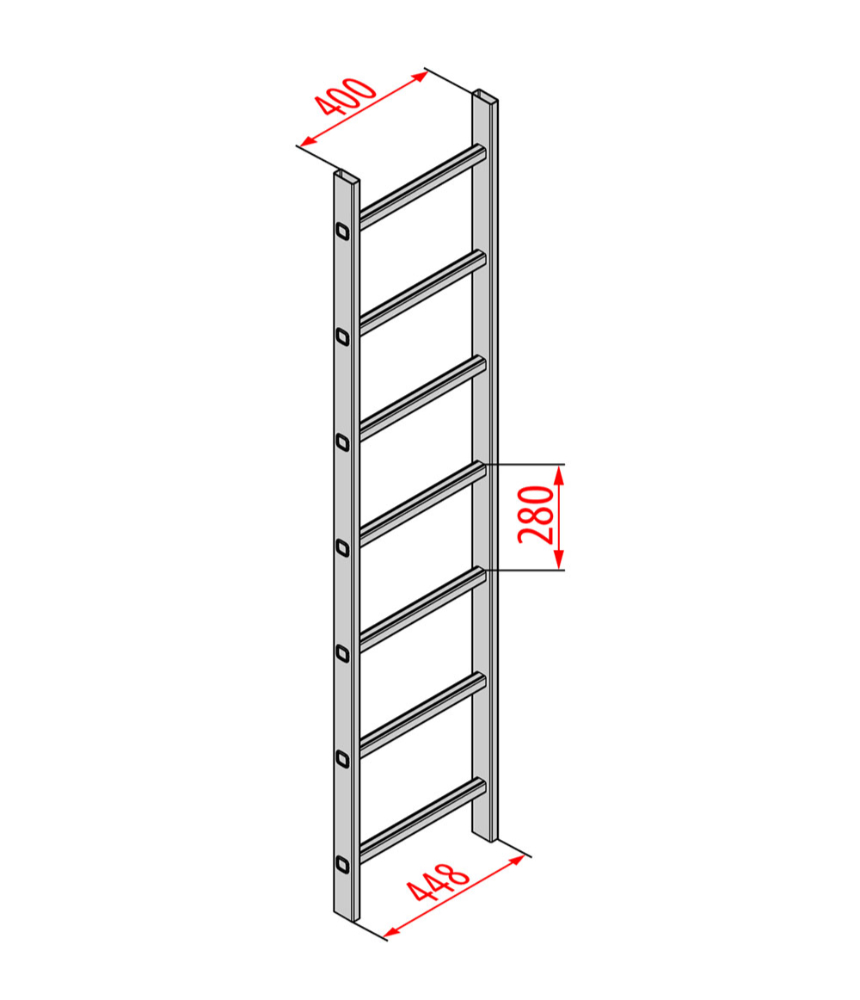

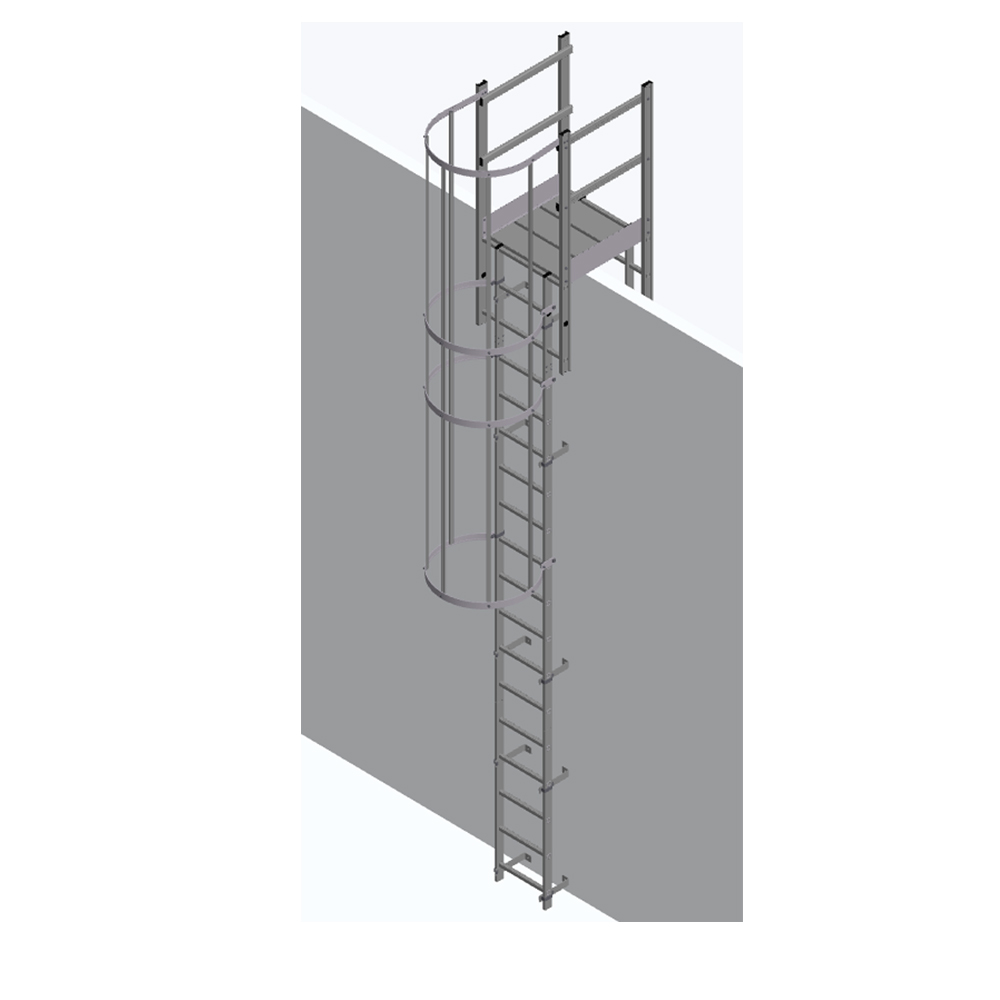

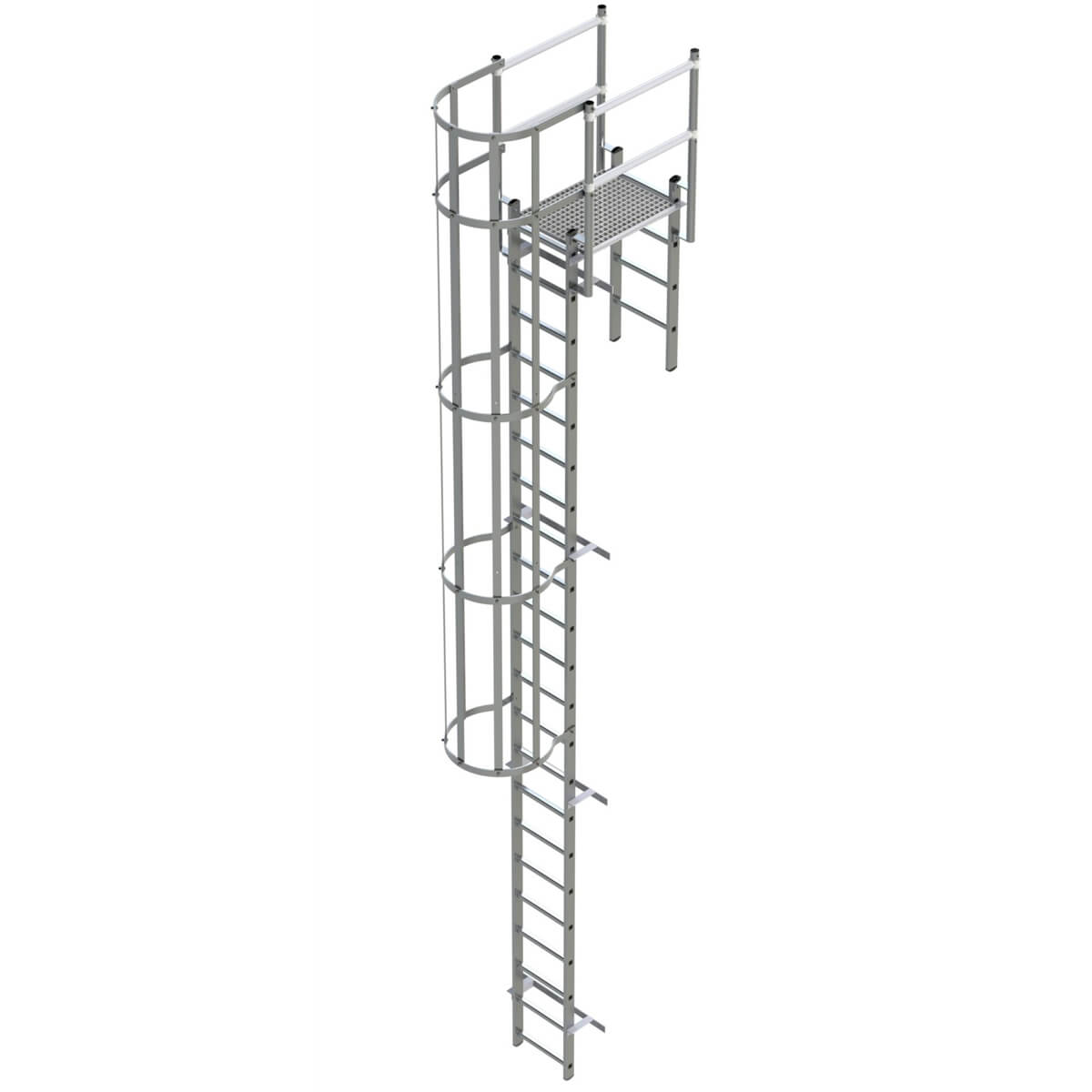

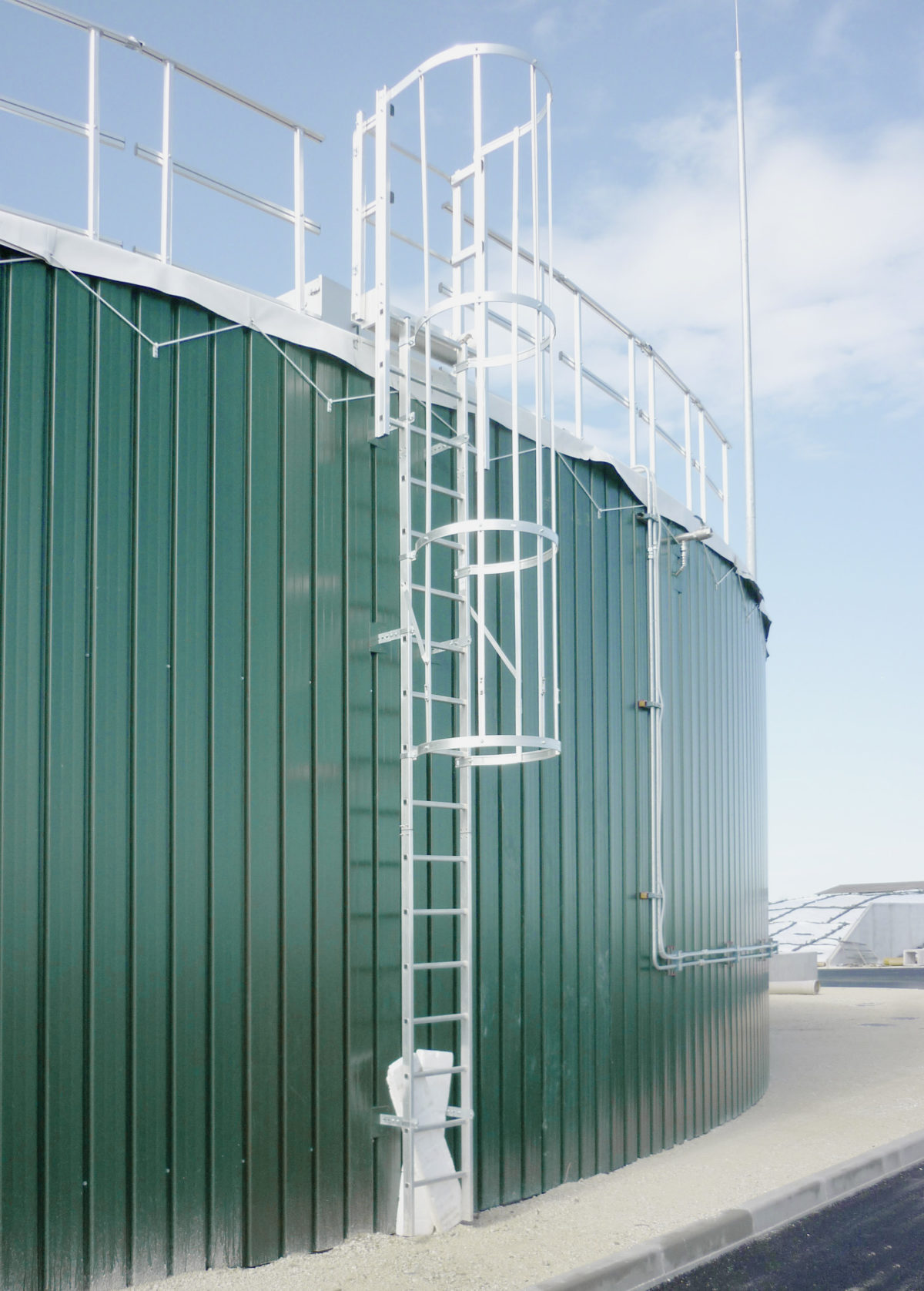

These fixed ladders are typically used where access to a roof or upper area and a parapet is required. The safety cage braces are G-Profiles into which the hammer head bolts are easily inserted after installing the vertical ladders. Subsequently, this makes it possible to easily shift the braces even after installation. A fixed access ladder fitted with a cage offers a completely enclosed, safe method of access for almost any situation with a climb height of 3m – 10m. Supplied as a pre-drilled set of parts ready for on site installation, it can be cut down to specific size, and assembled very quickly using only a spanner. These ladders are tested to the current national and international standards (DIN 18799-1, DIN 14094-1, DIN EN ISO 1422 and EN353-1) Certified to: EN 14122 DIN 18799-1 DIN 14094-1 Ladder Specification: Material: Aluminium Class 1 Heavy Duty Rung Load Rating: 150kg Stand-off brackets: 200mm from wall Fixings in stainless steel A4 grade External Ladder Width: 448mm Parapet Platform Specifications Platform Length Options – Length 725 mm – Clearance Length 651 mm Length 950 mm – Clearance Length 876 mm Length 1175 mm – Clearance Length 1101 mm Platform Width – 700mm Cage Specifications Cage Diameter – 724mm Strap: 50 x 10mm alloy bar Fixings: Socket bolts (A4 stainless steel) 5 No Straps as BS4211: 2005 A1 2008 Expert Advice Free 3D CAD Drawing Competitive Price Compliant With Safety Standards Get FREE Quote
