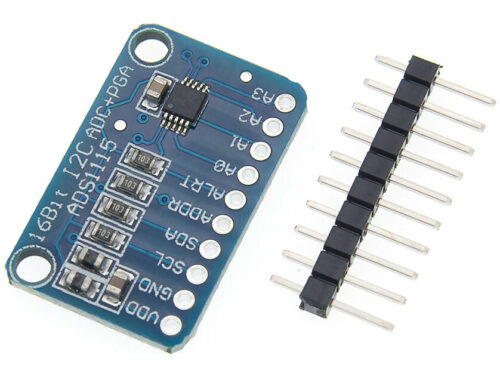

ADS1115 Analog-to-Digital 16 Bit Converter Module

The ADS1115 4-channel breakout board is perfect for adding high-resolution analog to digital conversion to any microprocessor-based project. They are controlled from a standard 2 wire I2C bus providing 8 differential channels or 16 single end channels. A programmable gain amplifier is inbuilt for x16 gain. 2-5V input logic signal, compatible wirth all common 3.3V and 5V microcontrollers.  Specifications ADC bits: 16 Bit Interface type: I2C Channel: 4 Channel AN0 AN1 AN2 AN3 or 2 different input Input voltage: 2.0-5.5V Channel input voltage: 0-VDD Continuous mode: Only 150μA Single-shot mode: Auto Shut-Down Programmable Input Range: -0.256V ~ 0.256V, -0.512V ~ 0.512V, -1.024V ~ 1.024V, -2.048V ~ 2.048V, -4.096V ~ 4.096 V, -6.144V ~ 6.144V  Programmable data rate: 8sps-860sps Module size: Approx. 28 x 18mm Package Includes 1 x Module 1 x 10 Pin Header [mx_insert-post-ebay slug="ebay-t-default"] SKU: MOD3-000 Category: Input/Output Modules Tag: ADS1115
