1.3GHz 1600mW 2000mW VTX VRX

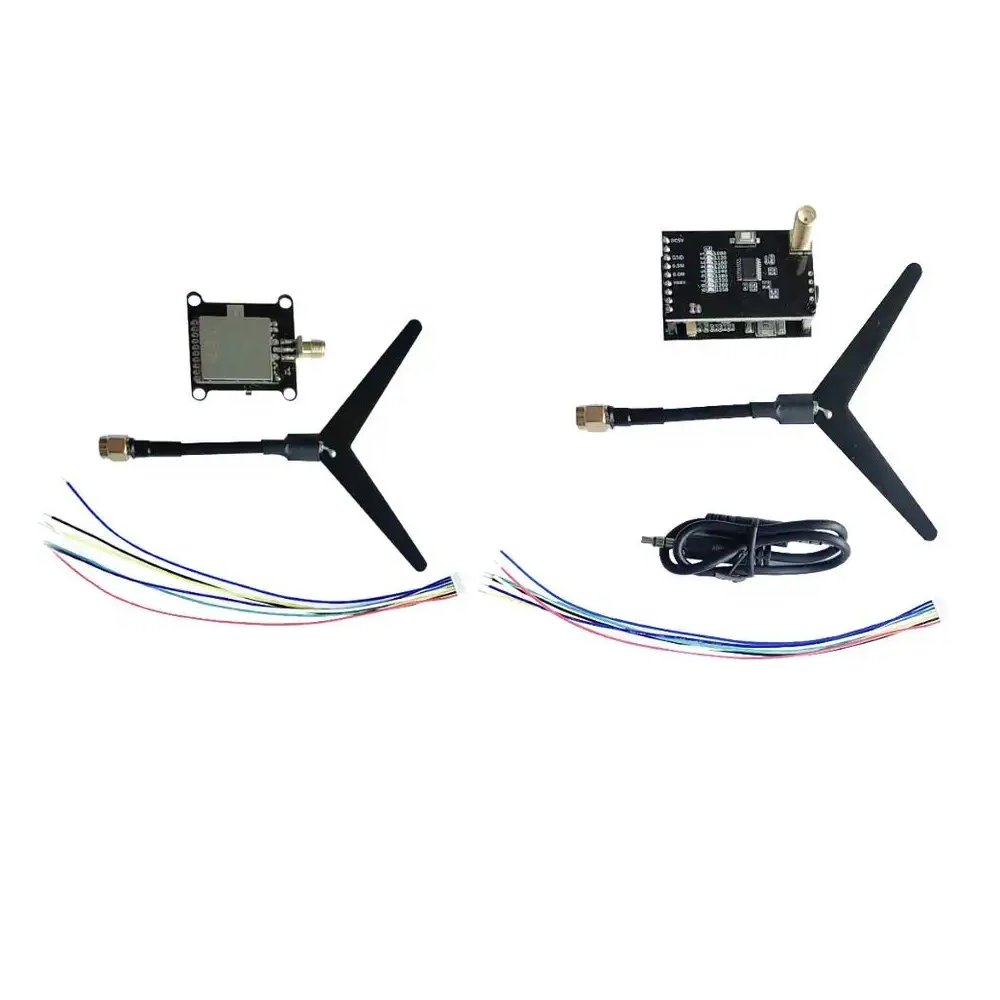

1.2GHz A/V VTX Transmitter VRX Receiver 9CH 1060~1380MHz 1-1.2-1.3G 1G3 1G3SE 0.1/25/200/800mW For Long Rang Drone VTX: 1： Button control and LED indicator light 1. Four green indicator lights are power indicator lights, respectively: 0.1mW (0)/25mW(D) /200mW (C)/800mW (H), defaults to 0.1mW when turned on. Long press the button to switch Is the next power. This operation can be cycled, and the corresponding power indicator light will light up every long press and hold Start. Note: The transmission power needs to be readjusted after each power outage. 2. Nine red indicator lights are frequency point indicator lights. Short press once to switch to the next frequency point. This operation It can be cycled, and the corresponding frequency indicator light will light up every short press. Note: This operating system has a memory function, and after a power outage, the system will save the current frequency point. 2、 Interface definition: 1. The antenna is an SMA interface; The antenna head is “external thread hole”, and the antenna rod is “internal thread Needle “configuration with 1.2G dedicated custom” Y “shaped antenna. The sequence of connecting the 2.7P1.25 row seats is: 1. Power input DC 7-28V; 2. Input grounding; 3. Video input; 4. 6.5M audio input; 5. DC output 7-28V; 6. DC output grounding; 7. DC output 5V Frequency band: 1060~1380MHz Channel customer: 9 Channel Frequency :1080/1120/1160/1200/1240/1280/1320/1360/1258(MHz) Audio Sub-carrier: 6.5MHz/6.0MHz Modulation type :FM Input format :NTSC or PAL Input power supply :DC 7-28V Output voltage :DC7.28V ; DC5V Profile dimension :45.5mm（L）*35.8mm(W)*8.4mm(H) Installation hole position: 30.5mm x 30.5mm net weight: 10g VRX DC Characteristics） POWER SUPPLY: 5.0V Current Consumption: (280 ±40)mA Environmental Specification） RF Receiving frequency range 1050~1380MHz Voltage Standing Wave Ratio 2:1 Demodulation system FM/PLL IF 480MHz ANT. input impedance: 50Ω, Typ. Profile dimension: 44mm（L）*27mm(W)*27mm(H) net weight :20g 1500mW VTX Transmitter Voltage:DC12V Current:400mA Frequency:1.2G-1.3 Channels:8CH Connector: transmitter module side RP-SMA jack, antenna SMA plug Frequency:CH4:1080 CH5:1120 CH6:1160 HC7:1200 HC8:1240 CH9:1280 CHH:1320 CHC12:1360 Power:1500mW
